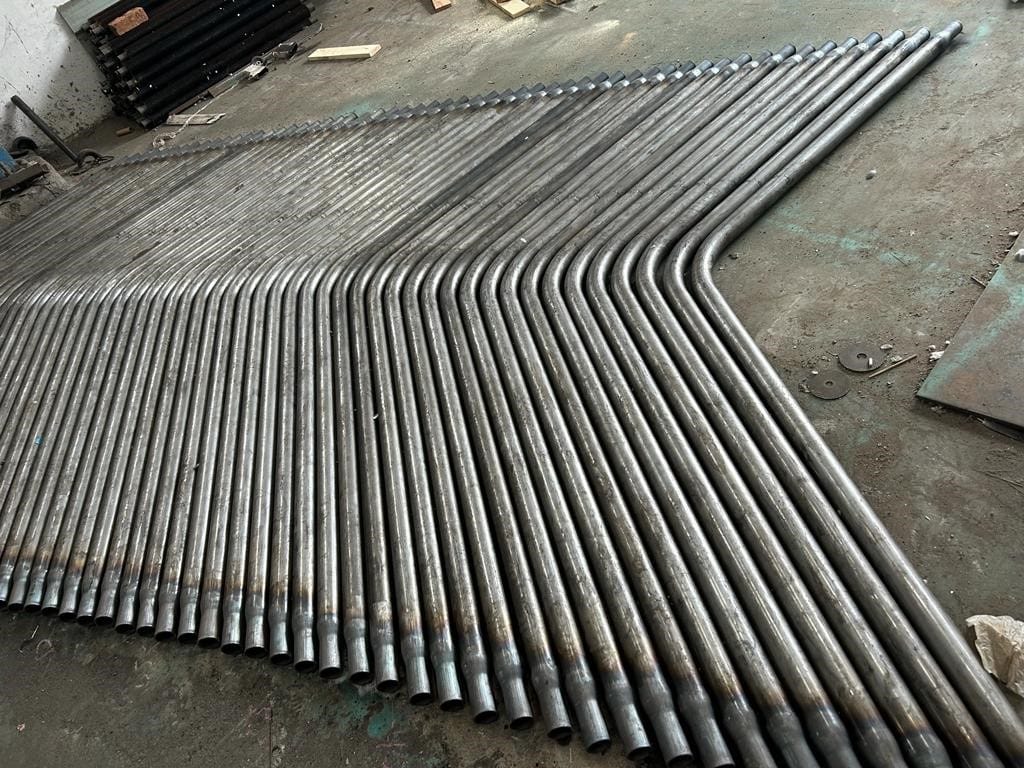

Water Wall Tube Bending
We offer precision bending of water wall tubes as per IBR (Indian Boiler Regulations) for any make and model of boiler. Our expertise ensures that the tubes are bent accurately as per approved drawings and specifications, maintaining the highest standards of quality and compliance.
With state-of-the-art bending machines and skilled technicians, we deliver water wall assemblies and replacement tubes that are ready for installation, minimizing downtime and ensuring long-lasting performance.
- Tube bending as per customer’s drawing & IBR standards
- Works for any make of boiler
- High dimensional accuracy & smooth finish
- Quick turnaround to meet your shutdown schedules
Contact us today for reliable water wall tube bending services for your boiler.
IBR Approved Membrane Wall Tube Bending
At Abhay Boilers & Projects Pvt. Ltd., we are committed to accurate water wall tube bending as well as membrane wall tube bending, which play a key role in boiler building construction. Water walls and membrane walls are assemblages of steel tubes connected by welds to resist high pressure and temperature to ensure proper heat transfer at power plants as well as industrial boilers. Accurate bending of tubes is required for proper fitment, functioning, and safety of a boiler.
- Membrane water wall panels are integral to boiler systems, ensuring maximum heat transfer and uniform steam generation.
- Bending is necessary to fit panels to the boiler design and connecting supply lines.
- At Abhay Boilers & Projects Pvt. Ltd., the newest bending technology ensures millimetre-level accuracy to accommodate contemporary boiler and power plant requirements.
- We accept different sizes and thicknesses of tubes, which are manufactured to comply with IBR requirements.
- Materials utilized are carbon steel, alloy steel, and stainless steel to accommodate different operating conditions.
Process of Membrane Wall Tube Bending
- Tube Assembly: Individual tubes are welded together to form membrane walls.
- Precision Bending: The welded panels are bent to the exact dimensions and curvature required for the boiler layout.
- Design Alignment: Ensures proper fit with the boiler structure and connection points with steam/water pipelines.
- Strength Retention: Bending is done to avoid damage or stress to the tubes.
- Inspection & Quality Control: Each panel is checked for accuracy, structural integrity, and compliance.
- Surface Protection: External coatings may be applied to improve resistance against corrosion and extend lifespan.
Advantages of Water Wall Tube Bending
- Enhanced Boiler Performance: Accurate bending makes sure that optimal heat transfer and efficient steam generation take place.
- Seamless Fitment: Eliminates misalignment issues. Also promises smooth installation and long-term performance.
- Longer Service Life: Prevention of stress and micro-cracks by controlled bending enhances panel durability.
- Energy Efficiency: The uniform bending improves the flow of steam and hot gases and decreases fuel usage.
- Lower Maintenance Cost: Proper fabrication and correct alignment decrease operational problems.
- Compliance with Standards: Produced according to IBR rules to provide for reliability and safety.
- Versatility of Application: Ideal for power plants, process industry plants, and industrial boilers of different sizes.
FAQs for Water Wall Tube Bending
Bending allows the panels to perfectly align with the boiler’s design and adjoining supply lines, ensuring proper fitment and performance.
Panels are generally made from carbon steel, stainless steel, alloy steel, etc. But this depends mainly on the operations, its temperature and other requirements.
Yes. All panels that are manufactured at Abhay Boilers & Projects Pvt. Ltd. are tested for IBR standards. This is how we promise safety, reliability and international standards.
